mapping perception
2.5–8 KG

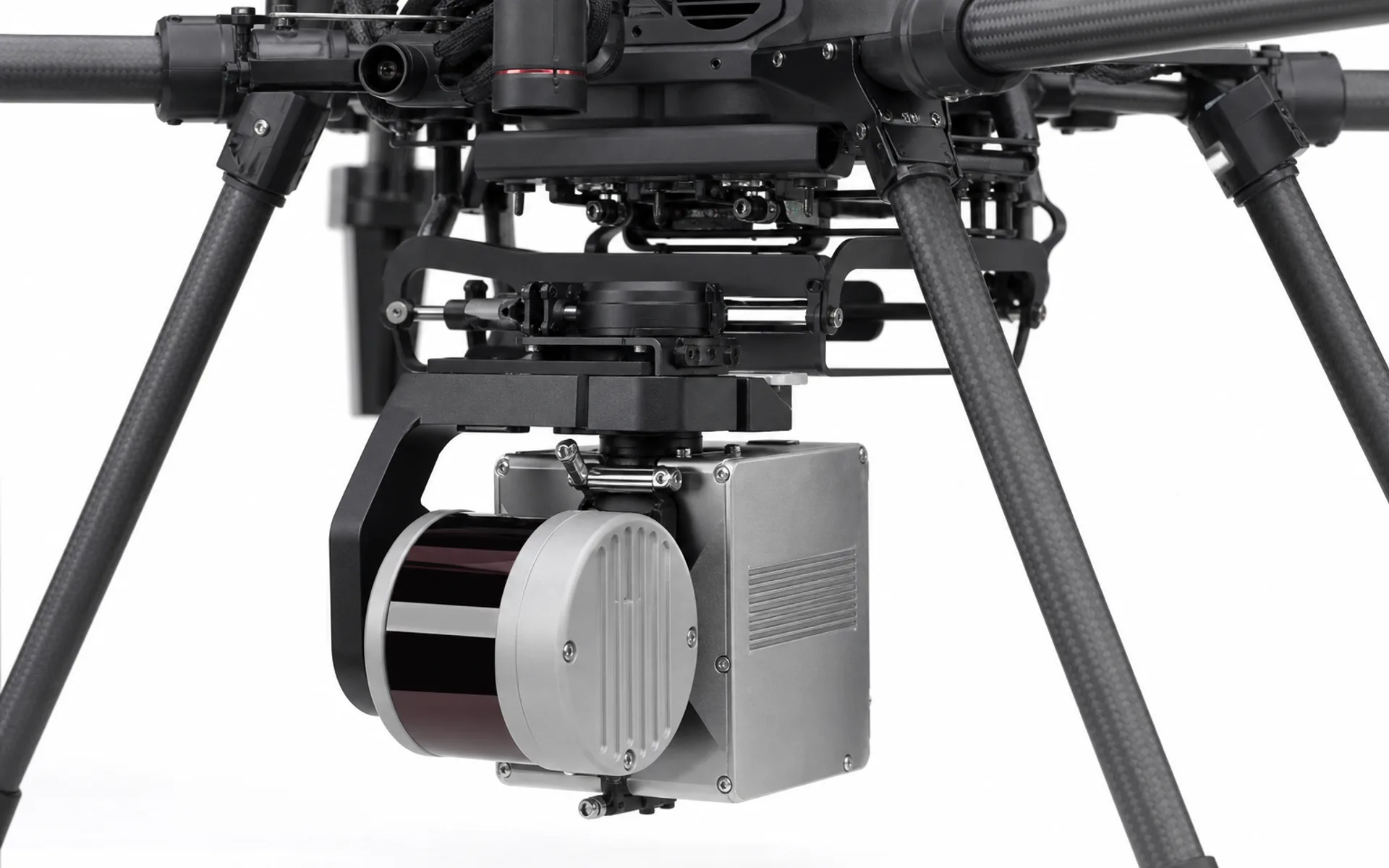

Mapping LiDAR
High-density point cloud collection is suitable for terrain surveying, power corridors and 3D modeling of complex structures.
Understand the load
Return to home page
Payloads and Integration
Open payload ecology · Rapid integration
LiDAR, multispectral, photoelectric pod, spray system and cargo module - universal quick-release interface, 45-second replacement, covering mechanical, electrical and data link integration.
mapping perception
0.8–2 KG

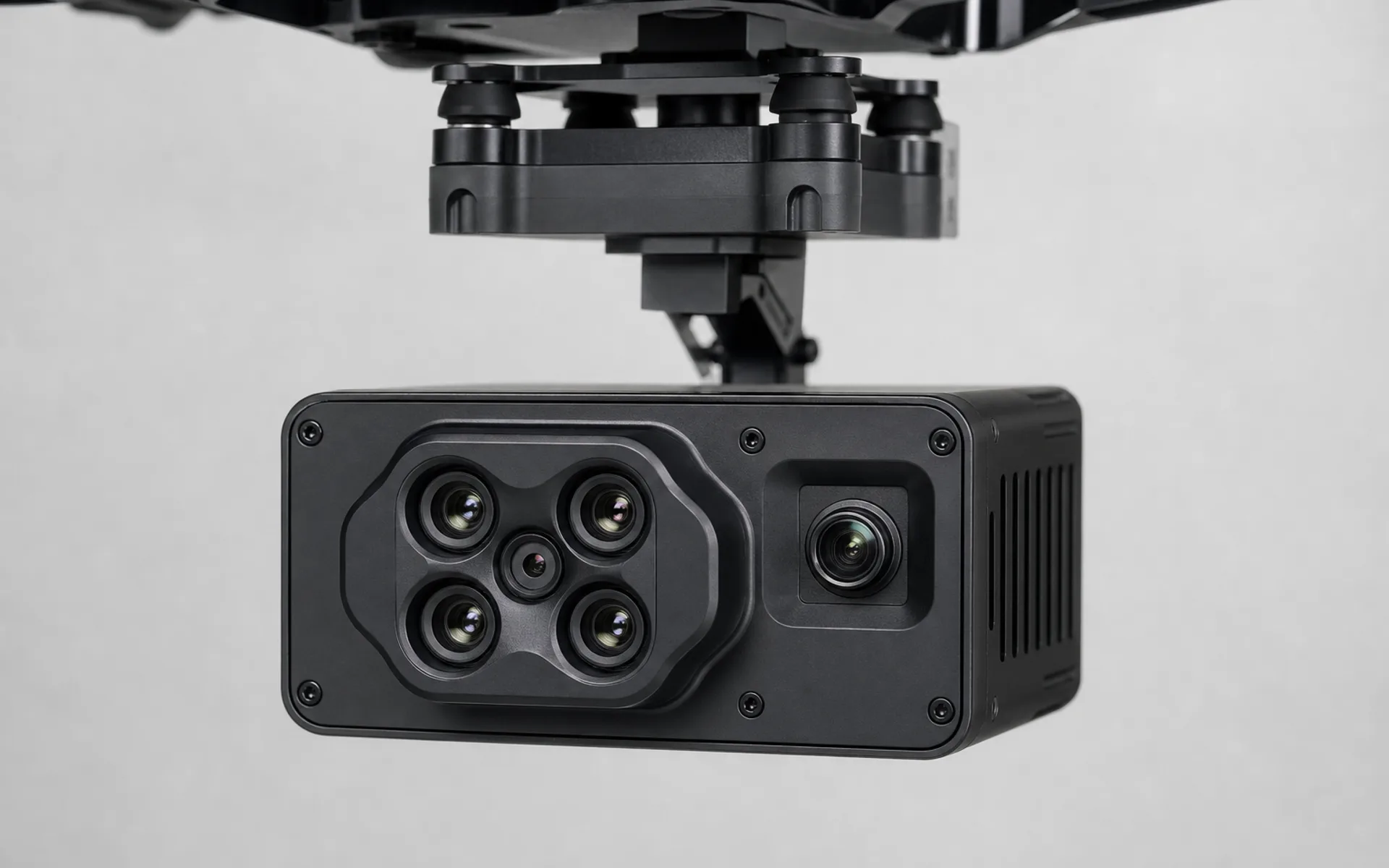

multispectral camera
Synchronize RGB and multi-band images to support precision agriculture, ecological monitoring and construction progress recording.
Understand the load
Inspection photoelectric
1.2–3 KG

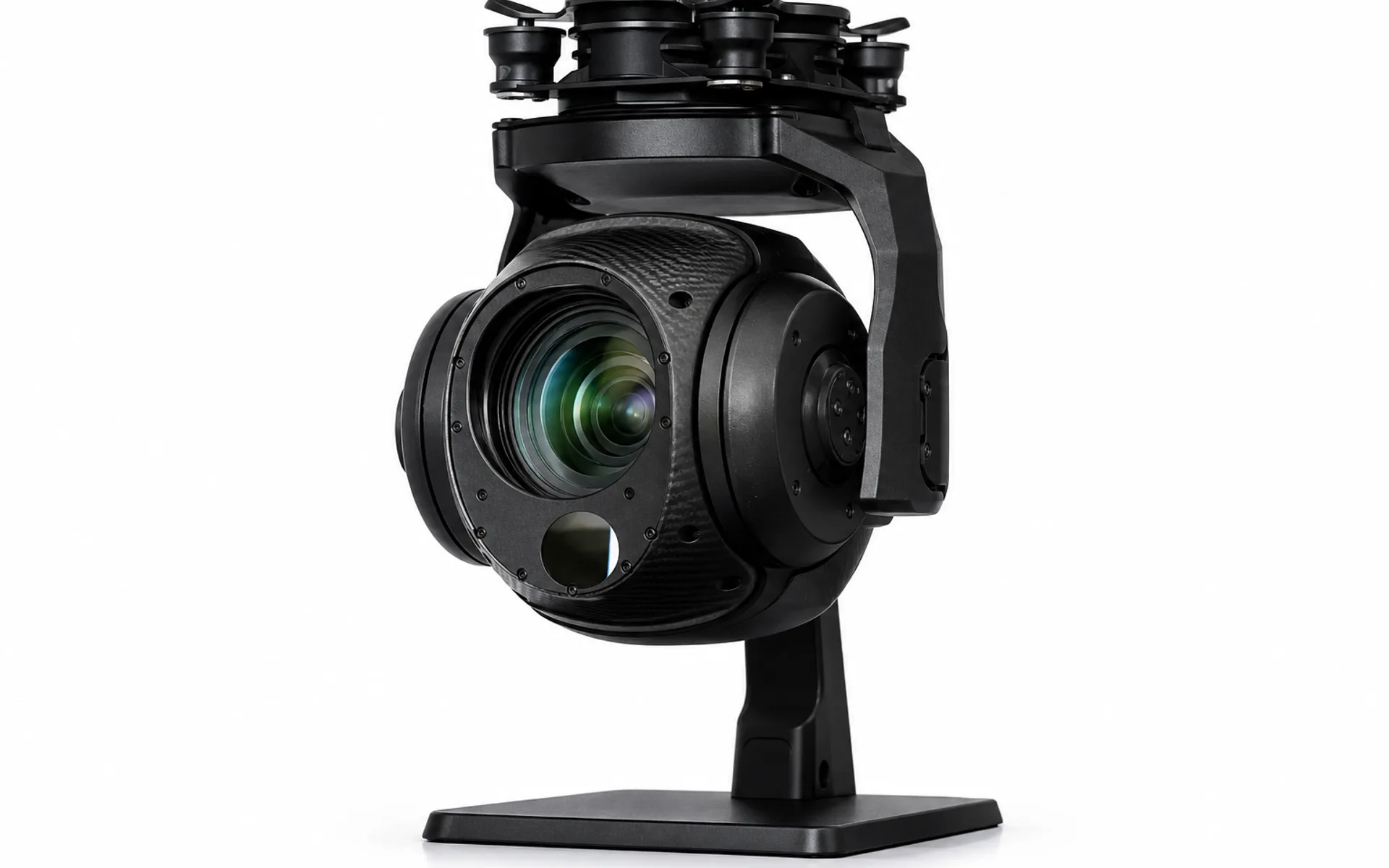

Photoelectric zoom pod
High-magnification visible light pod, the core load for power inspection, bridge inspection and security monitoring.
Understand the load
Inspection photoelectric
1.0–2.5 KG

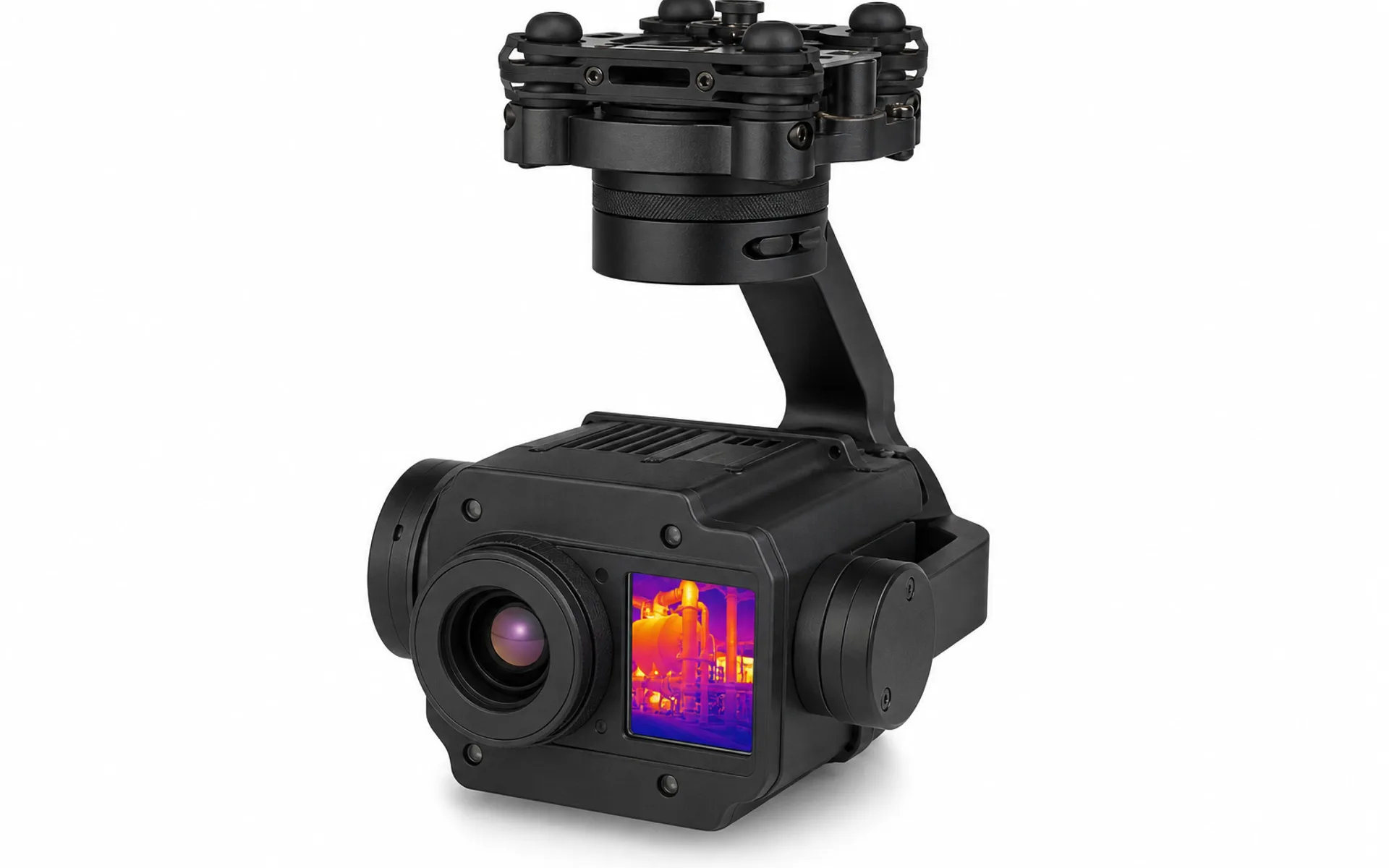

Infrared thermal imaging
Thermal anomaly screening and comparative analysis, standard load for inspection of power joints, photovoltaic panels and industrial equipment.
Understand the load
agricultural work
3–6 KG

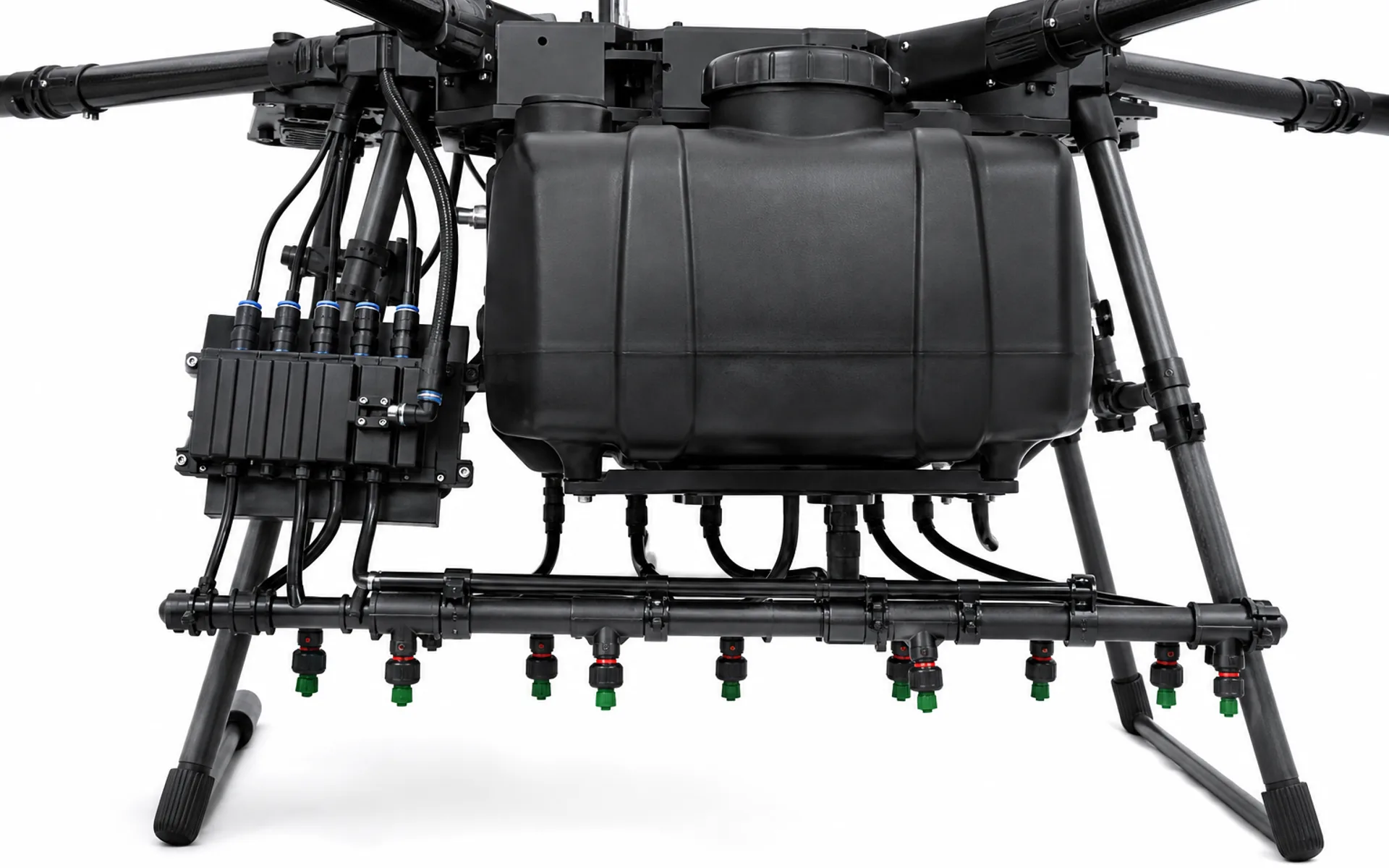

variable spray system
Large flow spraying and variable control support prescription map import and real-time adjustment of operating flow.
Understand the load
Transport load
5–35 KG

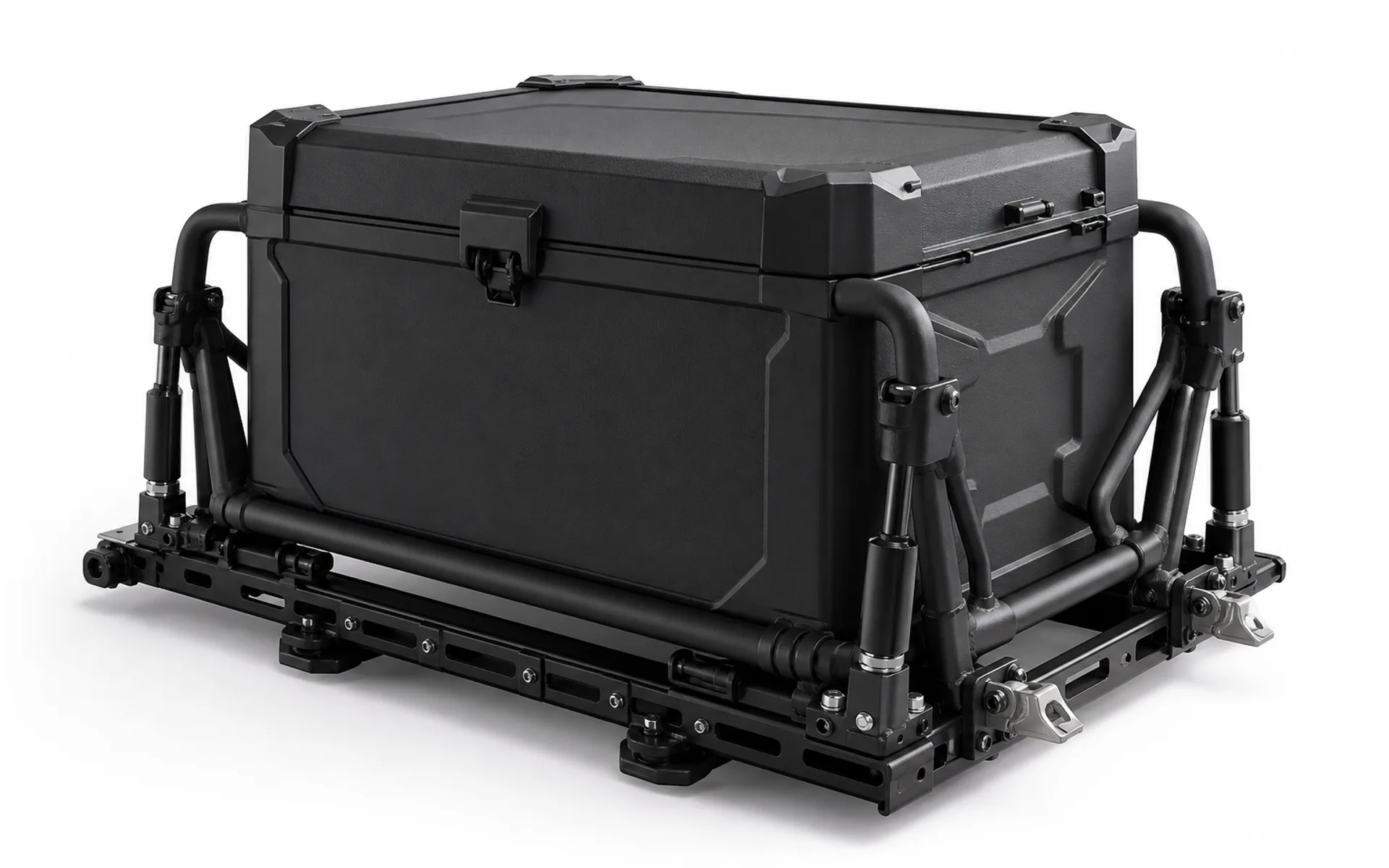

Modular cargo bay
It has a temperature-controlled, shock-absorbing cargo hold and rope-drop release, and is suitable for the transportation of emergency supplies, industrial spare parts and cross-border samples.
Understand the loadPlatform compatible
Payload × Platform Compatibility Matrix
✓ Indicates official integration verification; load capacity is the recommended upper limit, which is subject to mission profile and actual measurement.
| 载荷 | DX-X4 | DX-H6 | DX-H6HL | DX-X8 |
|---|---|---|---|---|
|
Mapping LiDAR
2.5–8 KG |
✓ | ✓ | ✓ | — |
|
multispectral camera
0.8–2 KG |
✓ | ✓ | — | — |
|
Photoelectric zoom pod
1.2–3 KG |
✓ | ✓ | — | ✓ |
|
Infrared thermal imaging
1.0–2.5 KG |
— | ✓ | — | ✓ |
|
variable spray system
3–6 KG |
✓ | ✓ | — | — |
|
Modular cargo bay
5–35 KG |
— | ✓ | ✓ | ✓ |
Integration capabilities
Trinity Integrated Engineering
Mechanical integration
Shock-absorbing quick-release mount, center of gravity calibration and structural strength assessment ensure flight safety and imaging stability.
Electrical integration
48V / 24V / 12V / 5V multi-channel power supply, redundant power distribution and hot-swappable battery co-design.
data integration
Ethernet · UART · CAN · GPIO · HDMI · USB-C multi-protocol, time synchronization and unified monitoring by the ground station.
Engineered for missions that cannot fail
Work with our engineering team to configure your platform — from requirements to delivery, tuned for your mission.
Discuss payload integration
